nVision Pressure Calibrator
Pressure Calibrating Device

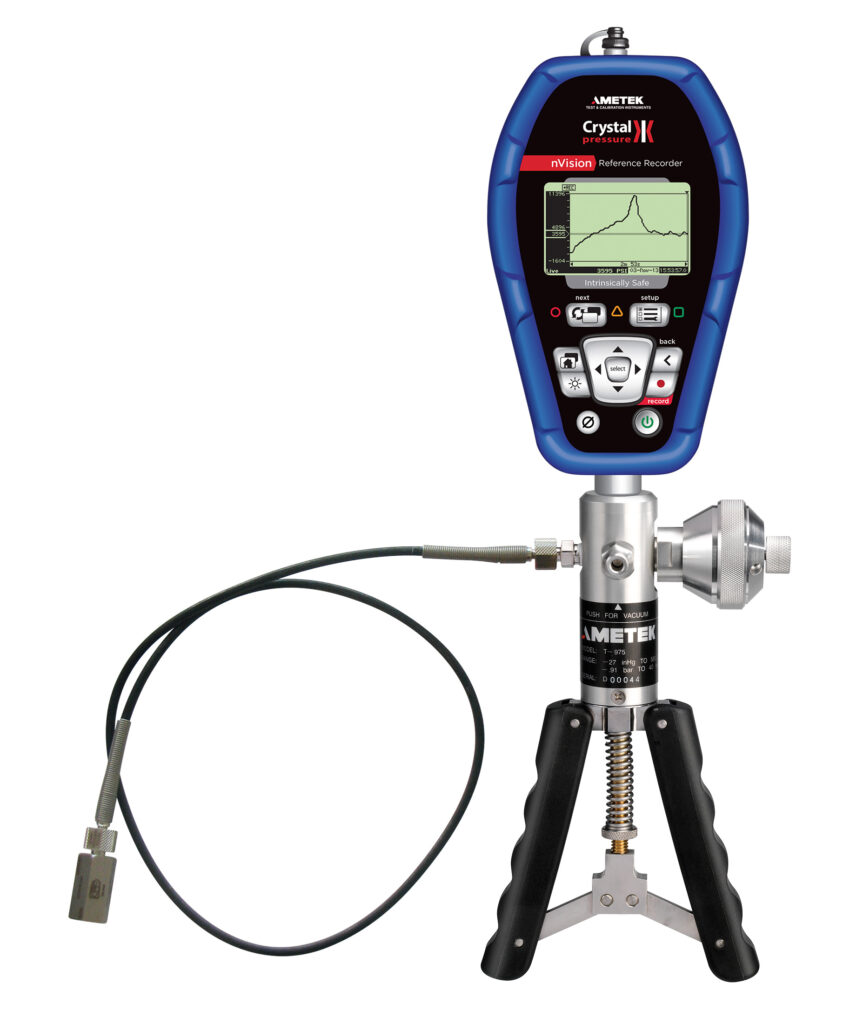

nVision Pressure Calibrator is an intrinsically safe, hand-held device for generating and recording pressure up to 8 Bar A (100 psi / 7 Bar R). It is accurate enough to replace a dead-weight tester and portable enough to complete pressure calibrations anywhere.
Contact UsKey Features and Benefits
The nVision records up 1 million data points at 10 readings per second from two modular sensor ports. Readings from either sensor have accuracy up to 0.025% of the indicated reading. Using both sensors, the nVision takes differential measurements at up to 0.05% of reading accuracy. All readings are fully temperature compensated, requiring no additional accuracy offsets for operating temperatures between -20°C to +50°C, and includes an accredited calibration certificate. During a test, the high-resolution LCD screen allows panning and zooming across any data set without pausing the recording.
The nVision runs on 4 AA alkaline batteries for 200 hours and weighs less than 1 kg. It is delivered completely with pump, software, aluminum protection suitcase, connection fittings and adaptor type 20003120.
Technical Specifications
Measuring Range:
Accuracy:
Temperature Operating Range:
Expected Battery Life Time:
Weight:
Environmental:
IP Class:
Interface & Power Source:
Recommended Calibration Interval:
